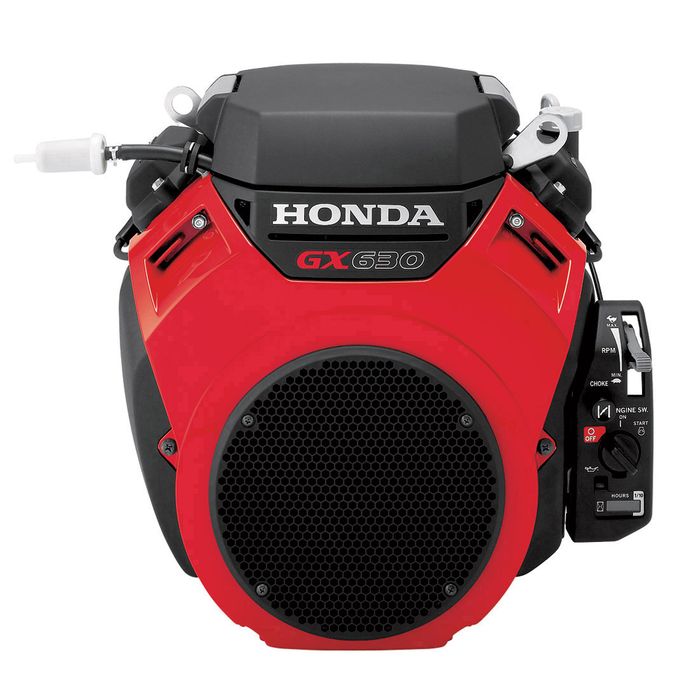

GX630 V-Twin Engine 20.8Hp Nett 1"Shaft
GX630RHQZB3
Raising the bar. On everything.
Honda V-twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency.
Note: Muffler is not included."Mufflers are available at additional cost, depending on style.
Features
Specifications
Model: GX630 Electric Start
Type: 4-stroke, overhead valve, twin-cylinder, horizontal shaft
Bore and Stroke: 78 x 72 mm
Displacement: 688 cm3
Compression Ratio: 9.3:1
Net Power: 15.5kW (20.8HP) at 3,600 rpm
Maximum Net Torque: 48.3 Nm at 2,500 rpm
Ignition System: Transistorised magneto ignition
Starting System: Electric Start
Cooling System: Forced-air
PTO Shaft Rotation: Counter-clockwise (from P.T.O. side)
Recommended Oil: 10W/30 API SG
Oil Capacity: 2.0 litres
Dry Weight: 44 kg
Lubrication System: Forced Lubrication
Shaft Type: QZB3 - 1" Straight Shaft with Keyway
Warranty
Price:
$2,979.00
Stock Level:
In Stock
